Ubiquiti UISP Console

EAN: 0810010077752
UISP Console, 2x 10G SFP+ ports, 9x GbE RJ45 ports, 4 GB DDR4, microSD Card slot

SKU: brt-0810010077752 Category: Tags: , , Brand:

Description

Product Overview

UISP Console, 2x 10G SFP+ ports, 9x GbE RJ45 ports, 4 GB DDR4, microSD Card slot



Detailed Description


UISP console with integrated switch and gateway

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments. The UISP Console is designed in a compact, durable metal casing and is suitable for mounting in 1U rack or on a wall (the mounting kit is included). The console is powered by an external AC/DC adapter, that is also included in packaging.

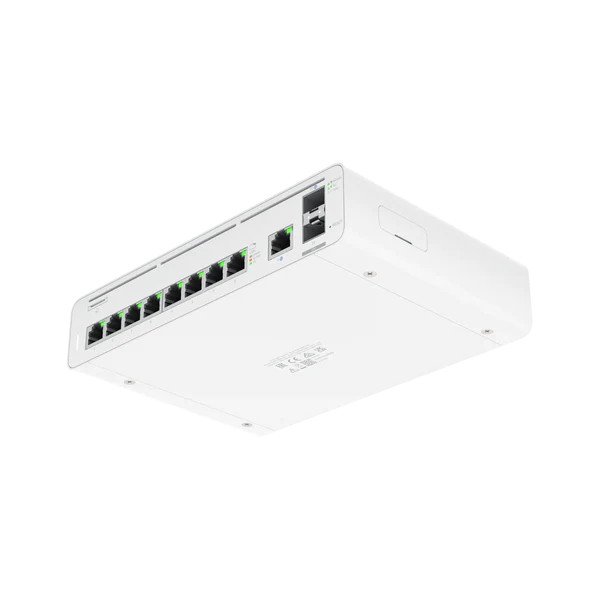

Ubiquiti UISP Console

UISP application support

Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients' plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app.

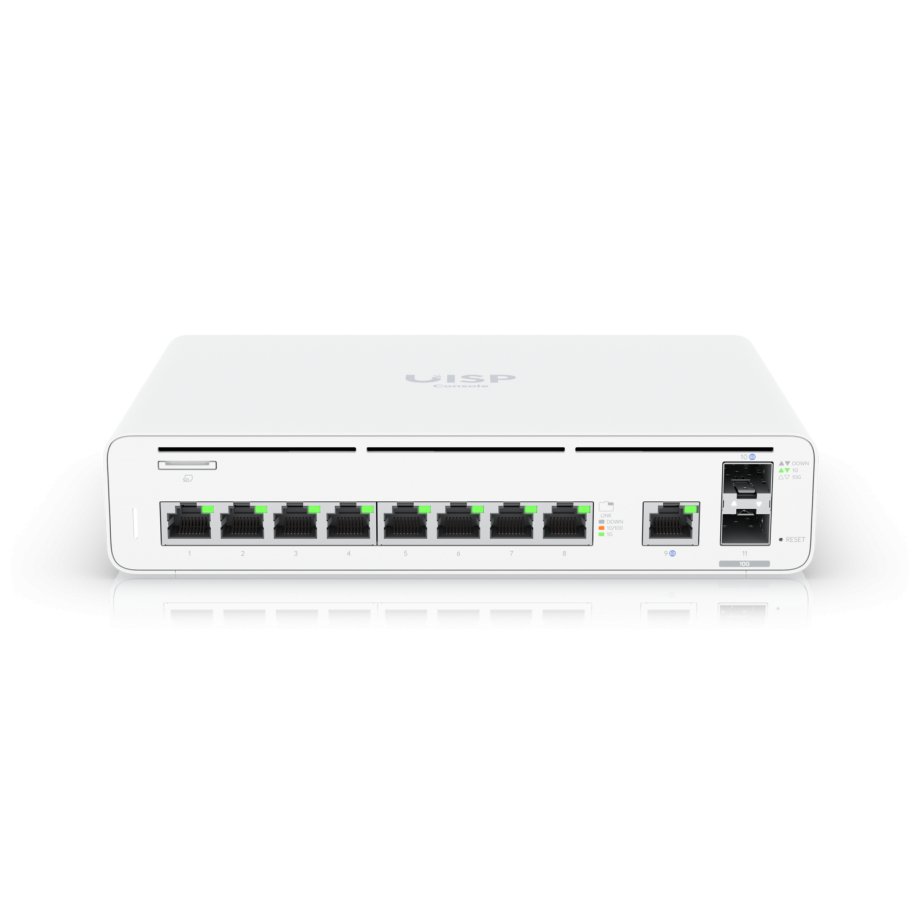

Ubiquiti UISP Console


Technical Specifications


Interfaces
RJ45 Ports (9) 1 Gbps
PoE Out Standards w/o PoE
SFP Ports (1) 1G SFP
SFP Ports (1) 10G SFP+
Management Ethernet
Management Bluetooth
System Specification
Chipset Quad-core ARM® Cortex®-A57 at 1.7 GHz
RAM 4 GB
Storage Memory 16 GB
Power
Power Method AC/DC Adapter
Power Method USP RPS DC input
Power Supply External AC/DC Adapter
Supported Input Voltage 24 – 28 V DC
Max Power Consumption 30 W
PSU / POE adapter 24 V DC 2.5 A
Physical Parameters
Color White
Number of Rack Units 1U
Material Stainless steel
Material Polycarbonate
Dimensions 210.4 x 140.2 x 43.7 mm
Weight 1.45 kg
Environment Indoor
Mounting Method RackMount
Mounting Method Wall Mount
Form Factor Rack-mounted 19"
Form Factor Desktop

Additional information

Weight 1,45 kg
Dimensions 21,04 × 14,02 × 4,37 cm
RJ45 Ports

(9) 1 Gbps

PoE Out Standards

w\/o PoE

SFP Ports

(1) 1G SFP

Management

Ethernet

Chipset

Quad-core ARM® Cortex®-A57 at 1.7 GHz
