- Unrecognized
airMAX 2.4 GHz, 10 dBi Omni
- Technical Specifications AMO-2G10 Dimensions 1030 x 122 x 84 mm (40.6 x 4.8 x 3.3") Weight 2.1 kg (4.6 lb) Frequency Range 2.35 - 2.55 GHz Gain 2.35 - 2.55 GHz Elevation Beamwidth 12° Max. VSWR 1.7:1 Downtilt 4° Wind Survivability 200 km/h (125 mph) Wind Loading 62.3 N @ 160 km/h (14 lbf @ 100 mph) Polarization Dual-Linear Cross-pol…
-
-
-
-
-
-
- Unrecognized
airMAX 2.4 GHz, 13 dBi, Omni
- Technical Specifications AMO-2G13 Dimensions 1390 x 122 x 105 mm (54.2 x 4.8 x 4.1") Weight 2.4 kg (5.3 lb) Frequency Range 2.35 - 2.55 GHz Gain 13 dBi Elevation Beamwidth 7° Max. VSWR 1.7:1 Downtilt 2° Wind Survivability 200 km/h (125 mph) Wind Loading 71.2 N @ 160 km/h (16 lbf @ 100 mph) Polarization Dual-Linear Cross-pol Isolation 25…
-
-
-
-
-
-
- Unrecognized
airMAX 5 GHz, 10 dBi Omni
- Technical Specifications AMO-5G10 Dimensions 582 x 90 x 65 mm (22.9 x 3.5 x 2.6") Weight 680 g (1.5 lb) Frequency Range 5.45 - 5.85 GHz Gain 10 dBi Elevation Beamwidth 12° Max. VSWR 1.6:1 Downtilt 4° Wind Survivability 200 km/h (125 mph) Wind Loading 44.5 N @ 160 km/h (10 lbf @ 100 mph) Polarization Dual-Linear Cross-pol Isolation 25…
-
-
-
-
-
-
- Unrecognized
airMAX 5 GHz, 13 dBi, Omni
- Technical Specifications AMO-5G13 Dimensions 799 x 90 x 65 mm (31.5 x 3.5 x 2.6") Weight 820 g (1.8 lb) Frequency Range 5.45 - 5.85 GHz Gain 13 dBi Elevation Beamwidth 7° Max VSWR 1.5:1 Downtilt 2° Wind Survivability 200 km/h (125 mph) Wind Loading 84.52 N @ 200 km/h (19 lbf @ 125 mph) Polarization Dual-Linear Cross-pol Isolation 25…
-
-
-
-
-
-
- Unrecognized

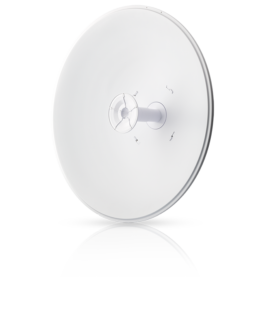

airMAX 5 GHz, 30 dBi RocketDish LW
- Technical Specifications RD-5G30-LW Dimensions 650 x 650 x 386 mm (25.6 x 25.6 x 15.2") Weight 7.4 kg (16.31 lb) Frequency Range 5.1 - 5.9 GHz Gain 30 dBi HPOL Beamwidth 5.8° (3 dB) VPOL Beamwidth 5.8° (3 dB) F/B Ratio 30 dB Max. VSWR 1.6:1 Wind Loading 790 N @ 200 km/h (178 lbf @ 125 mph) Wind Survivability…
-
-
-
-
-
-
- Unrecognized
airMAX IsoStation 5AC
- Hardware Networking interface (1) 10/100/1000 MbE port Power method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power supply 24V, 0.5A Gigabit PoE adapter (Included) Max. power consumption 8.5W Supported voltage range 20—26V DC LED (1) Power Operating temperature -40 to 70 C (-40 to 158 F)
-
-
-
-
-
-
- Unrecognized

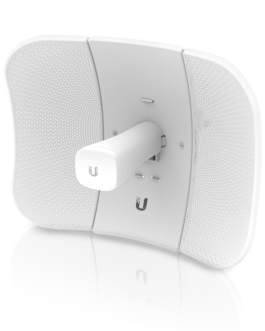

airMAX LiteBeam 5AC
- Hardware Networking interface (1) GbE RJ45 port Power method Passive PoE (pairs 4, 5+; 7, 8 return) Power supply 24V, 0.3A Gigabit PoE adapter (Included) Max. power consumption 7W Max. power output 25 dBm Gain 23 dBi Operating temperature -40 to 70° C (-40 to 158° F)
-
-
-
-
-
-
- Unrecognized

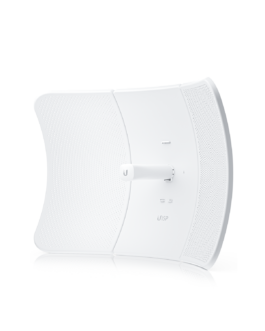

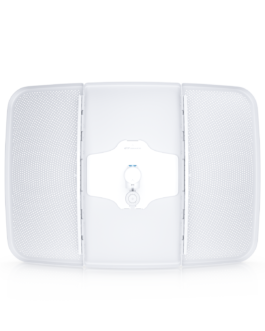

airMAX LiteBeam 5AC Extreme-Range
- Hardware Networking interface (1) GbE RJ45 port Power method Passive PoE 2-pair (4, 5+; 7, 8-) Power supply 24V DC, 0.5A Gigabit PoE adapter (included) Supported voltage range 22—26V DC Max. power consumption 7W RF connections Internal LEDs Power/ethernet Button Factory reset Operating temperature -40 to 70° C (-40 to 158° F)
-
-
-
-
-
-
- Unrecognized

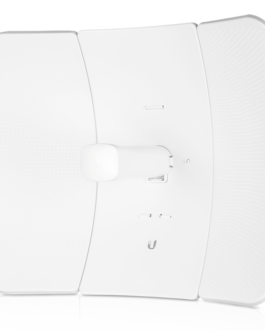

airMAX LiteBeam 5AC Long-Range
- Hardware Networking interface (1) GbE RJ45 port Power method Passive PoE (pairs 4, 5+; 7, 8 return) Power supply 24V, 0.3A Gigabit PoE adapter (Included) Max. power consumption 7W Supported voltage range 24V ± 10% Gain 26 dBi LEDs Power, Ethernet ESD/EMP protection Air/contact ± 24kV Channel sizes PtP mode: 10/20/30/40/50/60/80 MHz PtMP mode: 10/20/30/40 MHz Operating temperature -40 to…
-
-
-
-
-
-
- Unrecognized
airMAX LiteBeam M5
- Hardware Networking interface (1) 10/100 MbE RJ45 port Power method Passive PoE (pairs 4, 5+; 7, 8 return) Power supply 24V, 0.2A PoE adapter (Included) Max. power consumption 4W ESD/EMP protection Air/contact ± 24kV ETSI specification EN 302 326 DN2 Shock and vibration ETSI300-019-1.4 RoHS compliance Yes Operating temperature -40 to 70° C (-40 to 158° F)
-
-
-
-
-
-
- Unrecognized
airMAX NanoBeam 2AC
- Hardware Networking interface (1) GbE RJ45 port Power method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power Supply 24V, 0.5A Gigabit PoE adapter (Included) Max. power consumption 7.5W ESD/EMP protection Air/contact: ± 24kV LEDs Power, Ethernet, (4) signal strength Salt fog test IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 Vibration test IEC 68-2-6 Temperature shock test IEC…
-
-
-
-
-
-
- Unrecognized
airMAX NanoBeam 5AC
- Hardware Networking interface (2) GbE RJ45 ports Power method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power supply 24V, 0.5A Gigabit PoE adapter (Included) Max. power consumption 8W ESD/EMP protection Air/contact: ± 24kV LEDs Power, Ethernet, (4) Signal strength Salt fog test IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 Vibration test IEC 68-2-6 Temperature shock test IEC…
-
-
-
-
